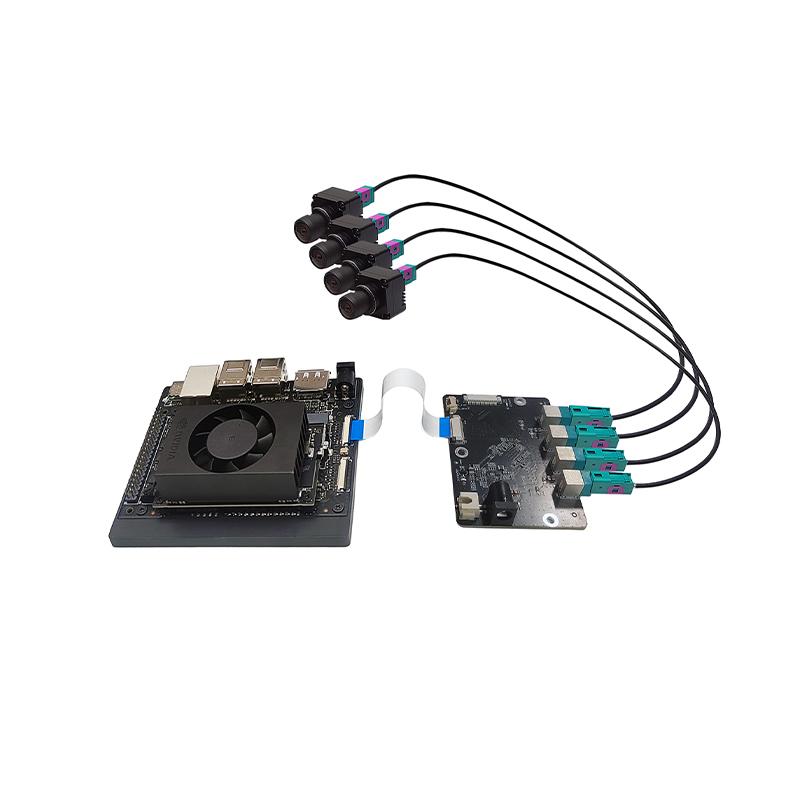

4CH GMSL2 Camera Developer Kit for NVIDIA Jetson Orin Nano Super

  2.6MP AR0233 with ISP GMSL2 Camera      Overview SG2-AR0233C-5200-G2A-Hxxx camera module is equipped with ONSEMI CMOS image sensor AR0233 and Maxim GMSL2. It has an automotive grade sensor with a welltuned Image Signal Processor (ISP) that produces exceptional image quality, which comes with an IP67-rated enclosure is supplied with an M12 lens that is focused and glued in our factory.        Product Default  1. The default shipping status of this product is fixed lenses, and users do not need to focus or replace the lenses themselves. If you need to replace the lens independently, please make a note when placing an order. After replacing the lens, the image quality is not within the service scope. 2. When leaving the factory, the camera is not calibrated by default. If it is necessary to calibrate the camera's internal parameters and write them into the camera storage unit, please make a note when placing an order.         Development/Capture Kits   Adapter board/Image Solution Adaptation Developer kit/output interface Maximum number ofcameras connected Picture SG8A-ORIN-GMSL2‍ Adapter board NVIDIA Jetson AGX Orin/AGX Xavier Developer kit 8 SerDes Camera to USB ConverterSG8-U30-GMSL2 NVIDIA Jetson Orin Nano/NXDeveloper KitARM platform/computer/industrialcomputer/USB3.0 interface 1 Compatible with UVC protocol, providing upper computer acquisition software CoaxCapture II GMSL Capture Card PC/IPC/PCIe3.0 8 If you need relevant development support, please contact Sales@sensing-world.com          Features  1. Output format: Uncompressed YUV422 format 2. S-mount IP67 compliant lens focused and glued at our factory 3. Multi−Camera synchronization Support 4. Support different focal length lens 5. FCC , CE and RoHS        Application 1. Automotive 2. ADAS + Viewing Fusion 3. High Dynamic Range Imaging 4. Autonomous Driving 5. Robots

  5.4MP IMX490 with ISP GMSL2 Camera      Overview SG5-IMX490C-5300-GMSL2-Hxxx camera module is equipped with SONY Semiconductor CMOS image sensor IMX490 and Maxim GMSL2 . It has an automotive-grade sensor with a well-tuned Image Signal Processor (ISP) that produces exceptional image quality, which comes with an IP67-rated enclosure – is supplied with an M12/M15/M16/AA lens that is focused and glued in our factory.        Product Default  1. The default shipping status of this product is fixed lenses, and users do not need to focus or replace the lenses themselves. If you need to replace the lens independently, please make a note when placing an order. After replacing the lens, the image quality is not within the service scope. 2. When leaving the factory, the camera is not calibrated by default. If it is necessary to calibrate the camera's internal parameters and write them into the camera storage unit, please make a note when placing an order.         Development/Capture Kits   Adapter board/Image Solution Adaptation Developer kit/output interface Maximum number ofcameras connected Picture SG8A-ORIN-GMSL2‍ Adapter plate NVIDIA Jetson AGX Orin/AGX Xavier Developer kit 8 CoaxCapture II GMSL Capture Card PC/IPC/PCIe3.0 8 If you need relevant development support, please contact Sales@sensing-world.com          Features  1. Output format: Uncompressed YUV422 format 2. S-mount IP67/IP69K compliant lens focused and glued at our factory 3. Multi−Camera synchronization Support 4. Support different focal length lens 5. FCC , CE and RoHS        Application 1. Automotive 2. ADAS + Viewing Fusion 3. High Dynamic Range Imaging 4. Autonomous Driving 5. Robots

  16CH GMSL2 Camera Developer Kit for NVIDIA Jetson AGX Orin Overview  SG4A-ORIN-GMSL2 adapter board, which allows up to 16 cameras to be connected to the Jetson AGX Orin/Xavier module, is fully compatible with the NVIDIA Jetson AGX Orin/Xavier Development Kit. As there are many different types of GMSL cameras available, the adapter board can be adaptively operated at different frequencies i.e. it is compatible with both GMSL1 and GMSL2 protocol interfaces through software configuration.The GMSL camera is powered by PoC (Power over Coax), so all data, control signals and power are sent over a 50 Ohm coaxial cable, making the camera's cable routing flexible and easy to install in automotive applications. Adapter plate function Compatible with official kits Support for NVIDIA Jetson AGX Orin/Xavier Development Kit Compatible with different versions of NVIDIA JetPack SDK Jetpack 5.0.1, L4T r34.1.1 and above Supports up to 16 GMSL cameras Each SG4A-ORIN-GMSL2 single board has a built-in Maxim MAX96712, which supports 4*GMSL2 cameras and can be connected to a total of 4 SG4A-ORIN GMSL2s, expanding to a maximum of 16 channels. Support for synchronous triggering Support for external trigger signals for camera synchronisation Cameras can transmit up to 15 metres By using the GMSL protocol for cameras, you can support stable and reliable transmission of cameras over long distances, with a maximum distance support of 15 metres. Instructions for using the adapter plate SG4A-ORIN-GMSL2 adapter board is developed on a specific Jetson Linux version and you need to make sure the Jetson Linux version matches before installing the driver. If it does not match, you need to re-flash the system, otherwise the system will not boot after installing the driver. NVIDIA Jetson AGX Orin/Xavier supports two types of flashes using SDK Manager and Flash.sh script. Preparation required NVIDIA Jetson AGX Orin/Xavier Development Kit Computer with Ubuntu 18.04/20.04s 1 USB TYPE-C data cable 1pc

  8.3MP OX08D10 GMSL2 Camera Overview  SG8-OX08DC-G2A-Hxxx camera module is equipped with OMNIVSION CMOS image sensor OX08D10 and Maxim GMSL2(MAX9295A).It has an automotive-grade sensor , which comes with an IP67-rated enclosure – is supplied with AA lens that is focused and glued in our factory. Product Default  1. The default shipping status of this product is fixed lenses, and users do not need to focus or replace the lenses themselves. If you need to replace the lens independently, please make a note when placing an order. After replacing the lens, the image quality is not within the service scope. 2. When leaving the factory, the camera is not calibrated by default. If it is necessary to calibrate the camera's internal parameters and write them into the camera storage unit, please make a note when placing an order. Features  1. Output format: Uncompressed RAW format 2. AA/S-mount IP67 compliant lens focused and glued at our factory 3. Multi−Camera synchronization Support 4. Support different focal length lens 5. External trigger support Application 1. Automotive  2. ADAS + Viewing Fusion 3. High Dynamic Range Imaging 4. Autonomous Driving 5. Robots

  2.95MP ISX031 with ISP GMSL2 Camera Overview  SG3S-ISX031C-GMSL2F-Hxxx camera module is equipped with SONY CMOS image sensor ISX031 and Maxim GMSL2 serializer MAX96717F. It has an automotive-grade sensor with a well-tuned Image Signal Processor (ISP) that produces exceptional image quality, which comes with an IP67-rated enclosure is supplied with an AA lens that is focused and glued in our factory. Product Default  1. The default shipping status of this product is fixed lenses, and users do not need to focus or replace the lenses themselves. If you need to replace the lens independently, please make a note when placing an order. After replacing the lens, the image quality is not within the service scope. 2. When leaving the factory, the camera is not calibrated by default. If it is necessary to calibrate the camera's internal parameters and write them into the camera storage unit, please make a note when placing an order. Development/Capture Kits Adapter board/Image Solution Adaptation Developer kit/output interface Maximum number of cameras connected Picture SG8A-ORIN-GMSL2‍ Adapter board  NVIDIA Jetson AGX Orin/AGX Xavier Developer kit   8 SerDes Camera to USB Converter SG8-U30-GMSL2 NVIDIA Jetson Orin Nano/NX Developer Kit ARM platform/computer/industrial computer/USB3.0 interface 1   CoaxCapture II GMSL Capture Card PC/IPC/PCIe3.0 8 If you need relevant development support, please contact Sales@sensing-world.com   Features  1. Output format: Uncompressed YUV422 format 2. AA IP67 compliant lens focused and glued at our factory 3. External trigger support 4. Multi−Camera synchronization Support 5. Support different focal length lens Application 1. Automotive 2. ADAS + Viewing Fusion 3. High Dynamic Range Imaging 4. Autonomous Driving 5. Robots

  8MP AR0820 with ISP GMSL2 Camera Overview  SG8S-AR0820C-5300-G2A-Hxxx camera module is equipped with ONSEMI Semiconductor CMOS image sensor AR0820 and Maxim GMSL2. It has an automotive-grade sensor with a well-tuned Image Signal Processor (ISP) that produces exceptional image quality, which comes with an IP67-rated enclosure – is supplied with an AA lens that is focused and glued in our factory. Product Default  1. The default shipping status of this product is fixed lenses, and users do not need to focus or replace the lenses themselves. If you need to replace the lens independently, please make a note when placing an order. After replacing the lens, the image quality is not within the service scope. 2. When leaving the factory, the camera is not calibrated by default. If it is necessary to calibrate the camera's internal parameters and write them into the camera storage unit, please make a note when placing an order. Development/Capture Kits Adapter board/Image Solution Adaptation Developer kit/output interface Maximum number of cameras connected Picture SG8A-ORIN-GMSL2‍ Adapter board  NVIDIA Jetson AGX Orin/AGX Xavier Developer kit   8 CoaxCapture II GMSL Capture Card PC/IPC/PCIe3.0 8 If you need relevant development support, please contact Sales@sensing-world.com   Features  1. Output format: Uncompressed YUV422 format 2. S-mount IP67 compliant lens focused and glued at our factory 3. Multi−Camera synchronization Support 4. Support different focal length lens 5. FCC , CE and RoHS Application 1. Automotive 2. ADAS + Viewing Fusion 3. High Dynamic Range Imaging 4. Autonomous Driving 5. Robots

  Jetson Orin Nano Super 4CH GMSL2 camera adapter board Overview  The SG4A-NONX-G2Y-A1 adapter board, whose MIPI interface is designedaccording to the standard NVDIA standard 22Pin interface (see the CN8 pindefinition on page 9), can be compatible with official and customer designdevelopment boards.  The design has 4 coaxial FAKRA interfaces for up to 4 cameras, supportingdifferent types of GMSL cameras. The adapter board can adapt to work in differentfrequencies, that is, it is compatible with GMSL1 and GMSL2 protocol interfacesthrough software configuration.  The Power supply of GMSL camera is provided byPoC (Power over Coax), so all data, control signals and power are sent through a 50ohm coaxial cable. This makes the camera's cable wiring flexible and easy to install inautomotive applications. Adapter plate function Compatible with different versions of the NVIDIA JetPack SDK Jetpack5.0.1, L4T r34.1.1 and later versions Supports up to 4 GMSL cameras SG4A-NONX-G2Y-A1 Built-in ADI（MAXIM）MAX96712, supports up to 4 GMSLcameras Support synchronous trigger Supports external access trigger signals to achieve camera synchronization The maximum transmission distance of the camera is 15 meters By using the GMSL protocol for cameras, you can support stable and reliable transmission of cameras over long distances, with a maximum distance support of 15 metres. Instructions for using the adapter plate For more details, please refer to the product specifications or contact sales personnel at email Sales@sensing-world.com
